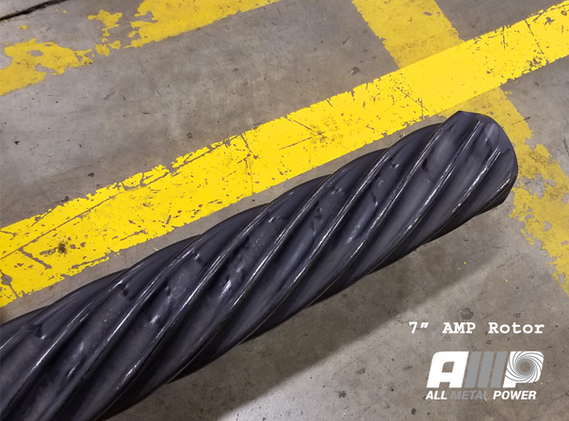

AMP - All Metal Power Section Technology

A major advancement in PDM technology. All Metal Power (metal-to-metal) power sections are rated to temperatures greater than 300°C (572°F), so they are not susceptible to extreme temperature and most mud-related issues seen with traditional PDM’s.  Metal-to-metal contact translates into much higher operating regimes.

AMP_3 matl_on WH.png

* AMP: All Metal Power section technology was the winner of the (inaugural) 2018 ICoTA Innovation Award.

Say GOODBYE to Elastomer Issues

HELLO to Increased Utilization


Stator elastomer (rubber) is susceptible to a number of failure modes related to downhole conditions including:

Rubber Chunking / Splitting - The most common failure mode. Chunking can result from mechanical stress and strain, fluid incompatibility leading to material breakdown, uneven growth (internal heat build-up) or abnormal shrinking.  Rubber curing (hardening) will also accelerate this failure method. Curing is accelerated greatly with heat and can even be introduced prematurely during the rubber injection process itself.



Blistering - Seen as a reaction to certain lubricants and gases resulting in what known as explosive decompression.



De-bonding - Primers / Glue reacting to fluid and lubricants incompatibility or poor application.



Seal (Performance) / Pressure Issues - Poor fit from one or more of the above conditions.

English

Specifications

Case Studies

MOT case_thm23.png

Español

Specifications - RE|FLEX with AMP - All Metal Power Sections

(Please contact us for additional sizes in development.)
